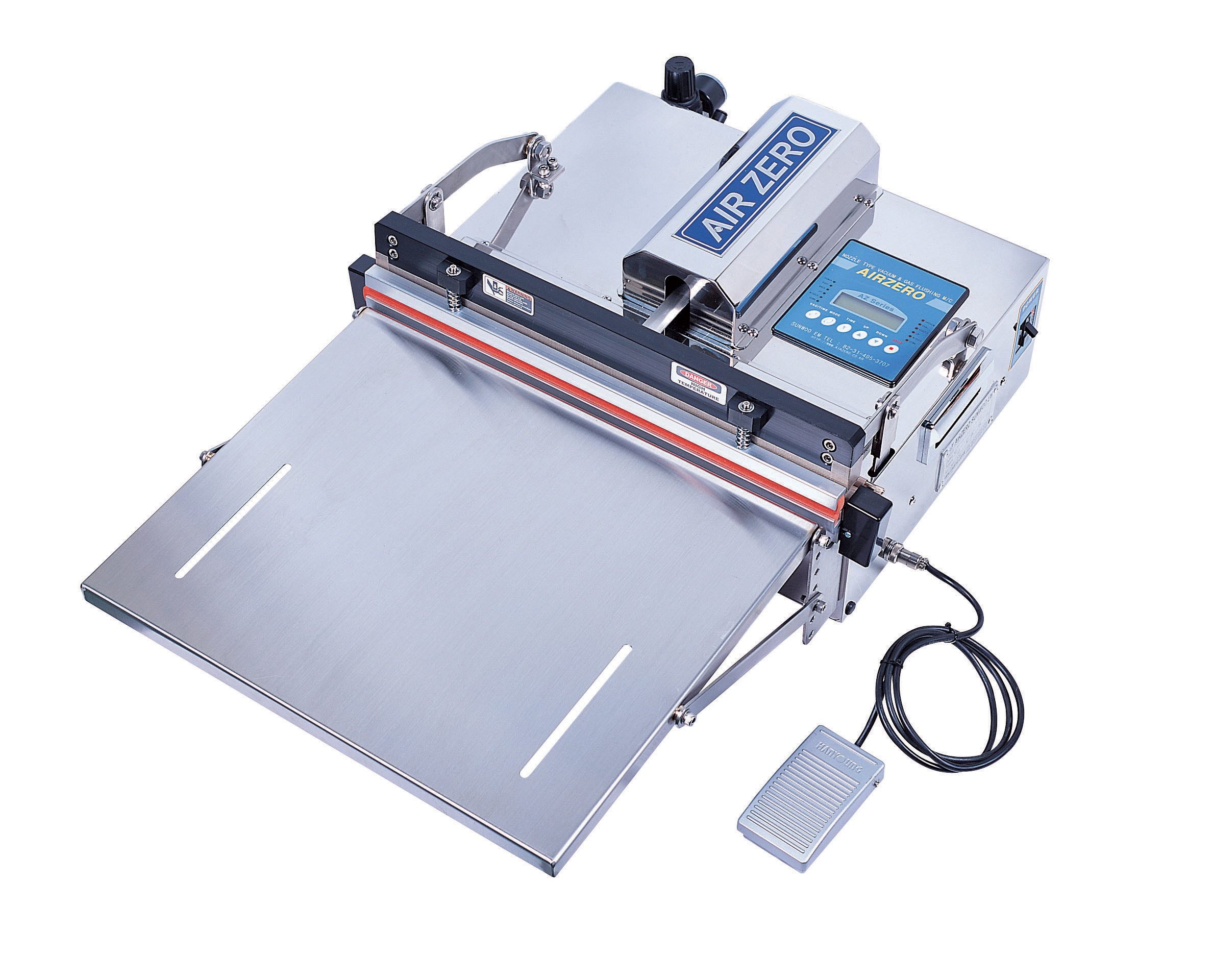

Vacuum Packaging Machine AZ-450-E (DeskTop Nozzle Type)
|
|
Specifications
|
|
Weight (kg)
Body Sealing bar length (mm) Sealing bar width (mm) vacuum Pump Required electricity Required air pressure Electricity consumption Max.final vacuum Vacuum creation Gas flushing/sealing/cooling Vacuum visualization Recommend for Option |
30 kgs. (Notice : This value is changeable relying on vacuum pump type) Stainless steel 450 mm. (option 600 mm. & 800 mm., double heat wire) 5 mm. and 10 mm. Ejector vacuum pump type, oil vacuum pump 1ph, 220v, 50/60Hz 5 – 7 kg/cm2 1.8 – 4.0 kW Generally 85 kPa in case of using ejector type vacuum pump Timer controlled / vacuum sensor controlled Timer controlled Appears digitally on LCD panel of control box When a user needs a sub-stand on which the machine is put1. PROGRAM MODE FUNCTION (option) : to memorize various work forms combined with vacuum, gas flushing and sealing respectively among M1 ~ M8, besides S mode for only sealing and V mode for only vacuum and sealing. It is convenient in the case that there are several types of products to pack. 2. NOZZLE’s FORWARD MOVEMENT DEGREE CONTROLLABLE ( option ) : The nozzle’s forward movement degree can be controlled as user wants. So, in the case thick product like many fold tray, user can set the nozzle to move deeply into packing film so that it can get close to the packed object. |
Added Optional Functions
- Gas Flushing Function
- Air Blower: Cleaning inside vacuum line by blowing out any particle with compressed air
- Water-contained-product-specialized Filter
Merits of Air zero Vacuum Sealer
1. Packing by vacuum degree (unit : kPa) or time (unit : 0.1 sec) – Vacuum sensor built in
2. 1st and 2nd vacuum degree/time & gas-flushing time can be set differently
3. Indicator of the operation and condition of machine (LCD, LED)
4. Digital control unit easily detachable from the body
5. Safety – Sealing bar goes up immediately if fingers are got between sealing bar
6. Digital counter function
7. Circuit-protection fuses installed
8. Pneumatic method for powerful sealing and low electricity consumption
Application Field (Industrial Goods)
Semi-con & Wafer / Electric, Optical & Medical Goods / Machinery Parts / Mobile Phone Parts / Research Equipment / Silicon / Others
Application Field (Foods)
Seafood’s / Fishes / Meats / Vegetables / Fruits / Grains / Tea / Coffee / Nuts / Noodle / Cheese / Herbs / Dried Fishes & Meats / Hot Goods
