Features
- Ceramic heating element with super long life time. QUICK 969ESD soldering station uses same soldering tips and heating element as international ones, resulting in easy replacement.
- Light handle is suitable for long time of use.
- It is designed with ESD safe, and can protect sensitive SMD components from being damaged by static charge leakage.
- Precise and stable temperature control.
- It is especially suitable for mounting and reworking SMD components by hand, soldering common and directly-inserted electronics, or lead free soldering under other special conditions.
Specifications
| Power consumption | 60 W |
| Output voltage | 24 V AC |
| Temperature range | 200℃- 480℃ |
| Temperature stability | ±1℃(stationary air, no load) |
| Tip to ground potential | <2 mV |
| Tip to ground resistance | <2Ω |
| Housing surface impedance | 106-109Ω Anti-electrostatic |
| Dimensions | 170(L) * 120(W) * 93(H) mm. |
| Weight | About 1.4 kgs. |

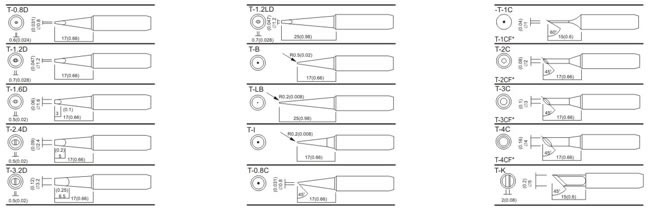

Replaceable tips
Option :
QUICK SMD Hot Tweezer 989
Output Voltage : 24 VAC
Power Consumption : 25W x 2
Temperature Range : 200’C – 480’C
ESD safety by design
