FEATURES
- LCD with double indication.
- Rapid thermal recovery, fast heating.
- Easy digital temperature calibration and control.
- Low-weight soldering iron (60 g).
- Temperature and calibration settings protected by password.
- Soldering iron may be replaced with a QUICK 986 Hot Tweezer.
- ESD protection
SPECIFICATIONS
| Power consumption | 60 W |
| Power supply | 220 V, AC |
| Temperature range | 100°C – 450°C (may be selected) |
| Ambient temperature (max) | 40°C |
| Temperature stability | ±2°C (stationary air, no load) |
| Tip-to-ground resistance | < 2 Ω |
| Tip-to-ground potential | < 2 mV |
| Heating element | HF electromagnetic element |
| Display | LCD |
| Soldering iron cord length | 1.2 m |
| Soldering iron length | 150 mm |
| Soldering iron weight | 60 g |
| Dimensions, L×W×H | 155 × 78 × 120 mm |
| Weight (without power cord) | ~ 1.61 kg |

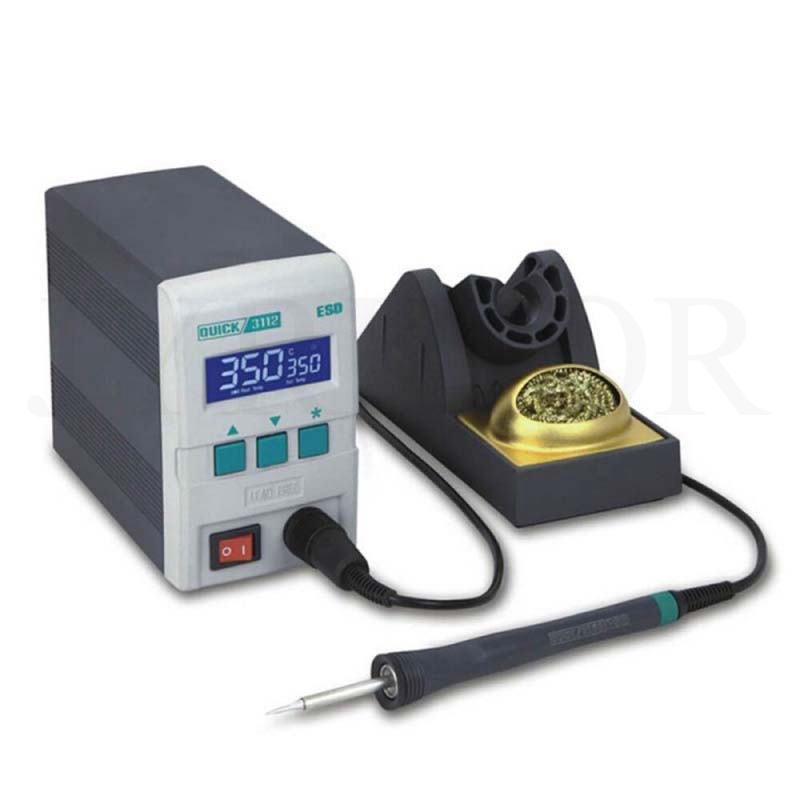

QUICK 3112 ESD lead-free soldering station is compatible with the following QUICK soldering iron tips (not included in the package):

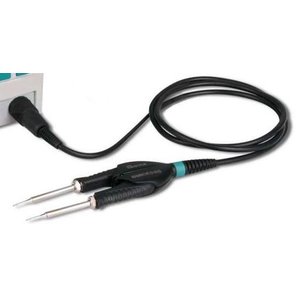

QUICK 986 Hot Tweezer.
