Features
- Low cost of replacing spare parts, separate design of soldering tip, sensor and heater.
- Sensor close to the tip, accurate temperature, rapid thermal recovery.
- Auto sleeping function available, energy-efficient.
- Temperature locked by password to ensure soldering efficiency.
- Digital temperature calibration, easy operation.
- ESD safe design
Specifications
| Item\ Model | QUICK 203H ESD |
| Temperature range | 50℃-600℃ |
| Temperature stability | ±2℃(stationary air, no load) |
| Input voltage/Frequency | 220V/110V 50Hz/60Hz |
| Output voltage/Frequency | 36V AC 400K Hz |
| Max power | 90 W |
| Temperature rising time (20℃-350℃) | 25 S |
| Temperature dropping | 25℃ |
| Heating mode | Intelligent |
| Heating theory | High frequency current |
| Tip to ground resistance | < 2Ω |
| Tip to ground potential | < 2mV |
| Auto sleeping | Yes |
| Temperature-lock mode | Password |
| Weight(no power cord) | About 2.6 kgs |

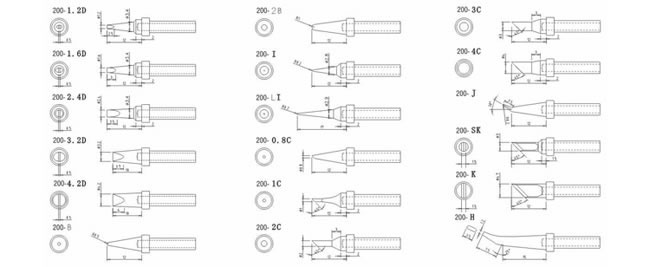

Replaceable Tips
