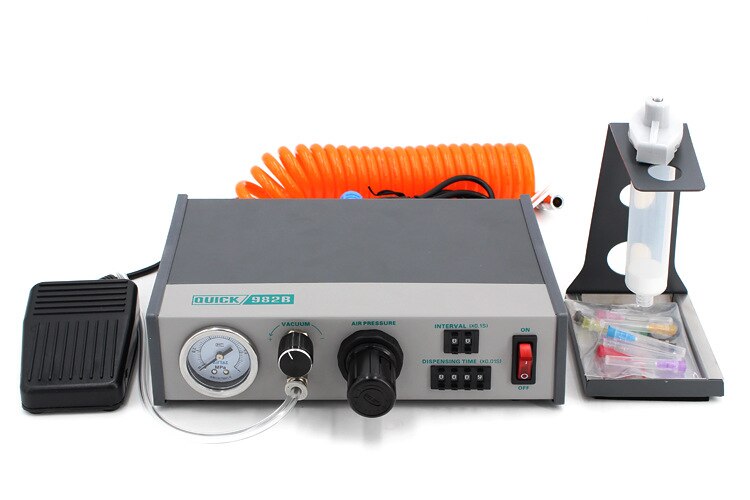

Features
1. Time of each injection controlled by timer, dispensing at regular time and quantity to ensure same glue quantity each time.
2. Select right nozzles, set right injection time and pressure, each injection time and quantity can be changed.
3. Dispensing controller can be used to inject liquid or paste, include red gel, yellow gel, epoxy resin, solder, silica gel, soldering fluid and etc.
4. Pedal switch and manual control modes available, manual modes are more suitable for stand-up staff.
5. Various barrels and nozzles are available.
6. New automatic dispensing machine available.
Specifications
| Dispensing modes | 16 modes Available |
| Dispensing time | 0.01S – 99.99S adjustable |
| Time interval | 0.1S – 9.9S adjustable |
| Repeat stability | ±0.05% |
| Dimensions | 238(L) x 150(W) x 60(H)mm. |
| Weight | About 1.7kg |
| Inner voltage | AC 24 V. |
| Min injection dosage | 0.01 ml |
| Input air pressure | 0.25 – 0.7 MPa (2.5-7 kg) |
| Output air pressure | 0.01 – 0.7 MPa (1-7 kg) |
