SL-1104 Anti static Overhead Ionizer Air Blower

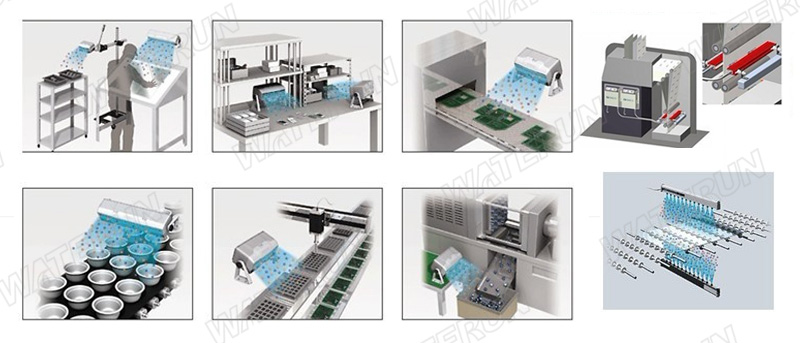

SL-1104 suspended four functions to eliminate static ion fan, you can solve the production problems caused by electrostatic interaction, such as solving the dust problems caused by static electricity, bonding plastics processing time caused by electrostatic repulsion jump small parts problem.
Technical Parameters:
1. Quick and static electricity.
2. ion flow coverage area.
3. Wind adjustment range.
The ion balance and stability, if necessary, can be installed ion regulator.
5. Have special ion emitter cleaner.
6. ionization indicator.
7. If necessary, the installation of cold air heating device.
8. If necessary, install the filter.
FEITA INTERNATIONAL LIMITED
9. The use hanging installation, can greatly save space.
10. SL-1104 suspended four ion fans have a good grounding protection.
Performance parameters：
Power : 80W
Input voltage : 220V/50Hz
Output voltage : AC 5.6KV
Ion balance : ≤±10V
The amount of wind : ≤2.4m3/min×4
Effective range of ion-wind zone : 1280 mm×1500 mm
Ozone generation: <0.03PPM (before ion fan, measured at 15 cm)
Noise : 60dB
Environmental Operating temperature: 0℃～50℃
Dimensions : 1100 mm（L）×1184 mm（W）×110 mm（H）
Weight : 8.3 kgs (net weight)
Housing material : Surface Iron
Test Results:
* SL-1104 suspended four ion fan ion balance voltage and time in line with ESD
standard static elimination, static elimination time from the test
