Features
1. Ion balance: around ± 10V, neutralize static charges rapidly.
2. Stable ion balance, adjust outside, easy operation.
3. Built-in silencer, low noise.
4. Capacitor coupling high voltage design, safe and reliable.
5. Air volume of QUICK445F adjustable.

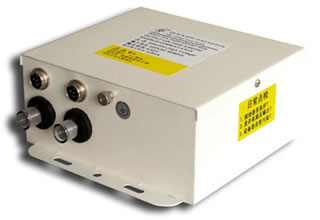

6. Two ionizing air guns can be connected to QUICK446F-II at the same time.
Specifications
| Supply voltage | 220V AC |
| Output high voltage | 7KV0-40% |
| Sub short-circuit current | <3mA |
| Power | <30W |
Note:
1. It’ll take around 10s to neutralize the static voltage ≤10V.
2. Test conditions: 300mm from the front panel, largest air volume.
Time for static neutralizing
| Air Pressure | Distance | 15cm | 30cm | 45cm | 60cm | |
| 0.2 Mpa | Decay time(S) | 0.9s 1.0s | 1.3s 1.4s | 1.7s 2.1s | 2.1s 2.9s | |
| Ion balance(V) | -1V | +5V | +6V | 0V | ||
| 0.4 Mpa | Decay time(S) | 0.8s 1.0s | 1.0s, 1.3s | 1.3s 2.0s | 1.9s 2.5s | |
| Ion balance(V) | 0V | +1V | +1V | 0V | ||
| 0.6 Mpa | Decay time(S) | 0.8s 0.9s | 1.0s 1.4s | 1.4s 1.8s | 1.5s 2.7s | |
| Ion balance(V) | -2V | -4V | +6V | -14V | ||
Note:
1. Ambient conditions: 22℃, 60-70%RH, test as per ANSI / EOS / ESD-S3.1-1991 standard.
2. Under 0.7MPa, noise below 80dB.
3. Test time of neutralize ion from 1000V to 10V and related ion balance voltage.
