Feature
Use for measuring loosened torque of tightened screws or additional tightening torque.
- Measured data can be imported to a computer.
- Up to 100 data items can be stored in the memory and controlled (applicable to HP and HDP only).
- With one unit of Torque Meter, max, min and ave torque values can be measured (applicable to HP and HDP only).
- New product, HP-1 is ideal for measuring 10N･cm or smaller torque.
- Torque for both clockwise or counterclockwise can be measured.
- As a standard specificataon, data output and analogue output are available.
- We offer calibration and maintenance services.
- “Inspection Report” is attached to all the Torque Meters.
Specification

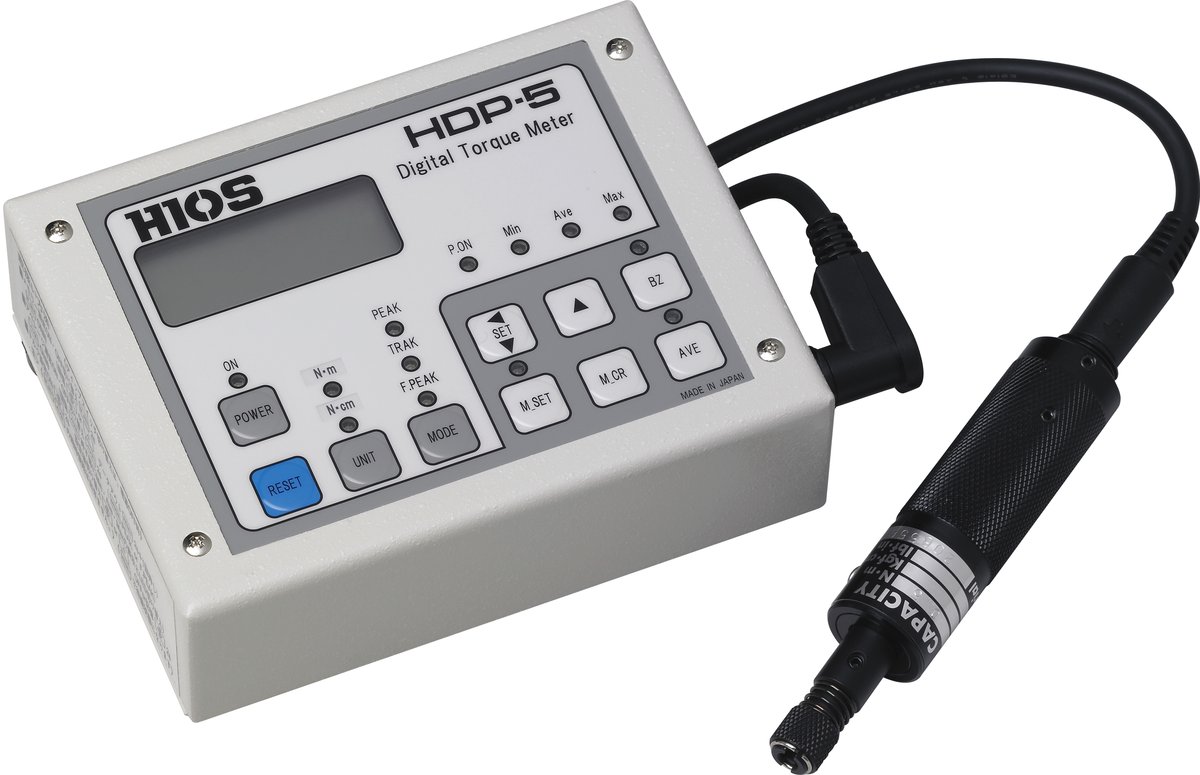

Peak Measuring Range HDP-5 : 0.015 – 0.5 N・m / 0.15 – 50 lbf・in
Bit socket : H4 or 1/4HEX

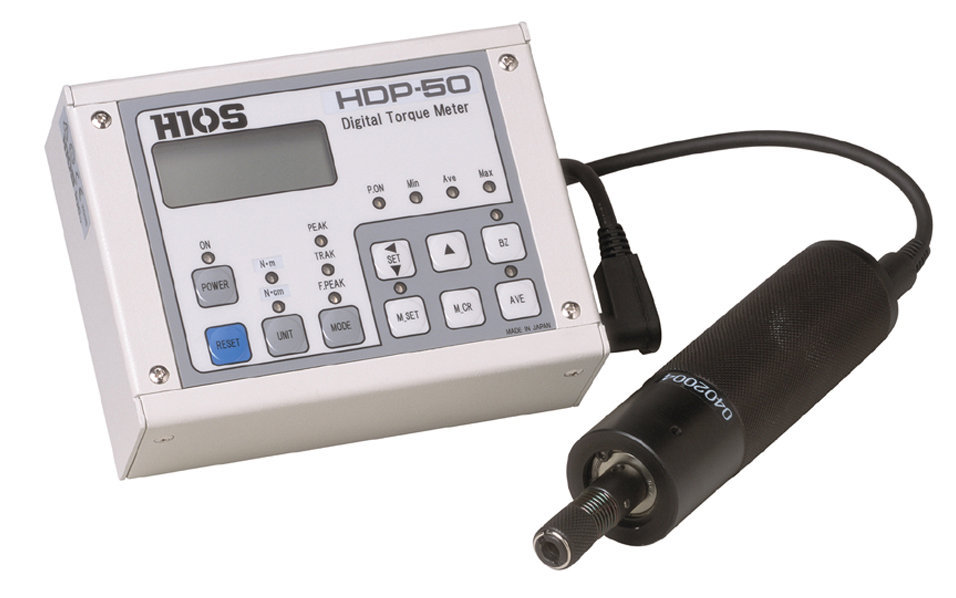

Peak Measuring Range HDP-50 : 0.15 – 5 N・m / 15 – 500 lbf・in
Bit socket : H5 or 1/4HEX
Peak Measuring Range HDP-100 : 0.15 – 10 N・m / 15 – 1000 lbf・in
Bit socket : 1/4HEX
Accuracy : Within ±0.5% (F.S.)
Measuring Models : TRACK, PEAK, FIRST PEAK
Detector Cord : 1.7m (P/N: DPC-0506)
Charging Time : 1.2V NiMH x 5 cells 1,000mA (within 6 hours)
External Dimensions(mm) : 125 ×95.6 ×42 (H) mm.
Weight (g) : 0.78 kgs.
Exclusive Battery Charger : Input ：AC 100-240V (50 / 60Hz)
Output ：DC 7.3-8V 0.5 A
