Feature
- Use for torque control of screwdrivers for automatic assembly machines
- Measured data can be imported to a computer.
- Up to 100 data items can be stored in the memory and controlled (applicable to HP and HDP only).
- With one unit of Torque Meter, max, min and ave torque values can be measured (applicable to HP and HDP only).
- New product, HP-1 is ideal for measuring 10 N･cm or smaller torque.
- Torque for both clockwise or counterclockwise can be measured.
- As a standard specification, data output and analogue output are available.
- We offer calibration and maintenance services.
- “Inspection Report” is attached to all the Torque Meters.
Specification

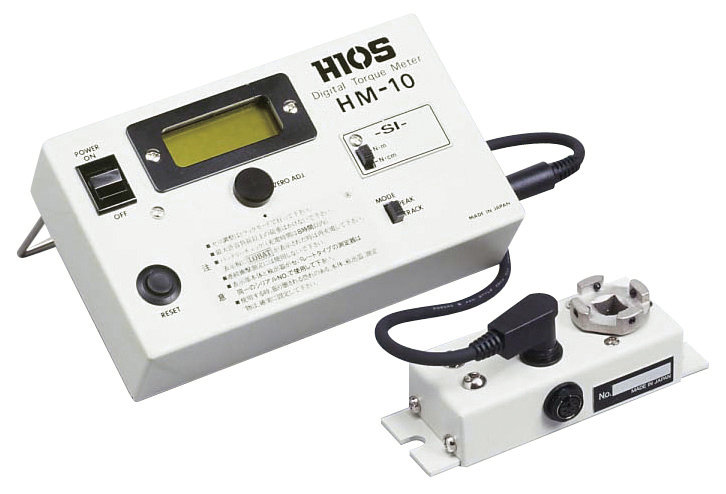

Peak Measuring Range HM-10 : 0.015 – 1 N・m / 1.5 – 100 lbf・in
Peak Measuring Range HM-100 : 0.15 – 10 N・m / 15-1000 lbf・in
Accuracy : Within ±0.5% (F.S.)
Measuring Models : TRACK and PEAK
Detector Cord : 1.7 m. (P/N: DPC-0506)
Charging Time : 6V NiMH (within 8 hours)
External Dimensions(mm) : 165 ×95 ×55 (H) mm.
Weight (g) : 1.35 kgs.
Exclusive Battery Charger : Input ：AC100V, 120V, 220-240V）
Output ：DC 7.2V 120mA
