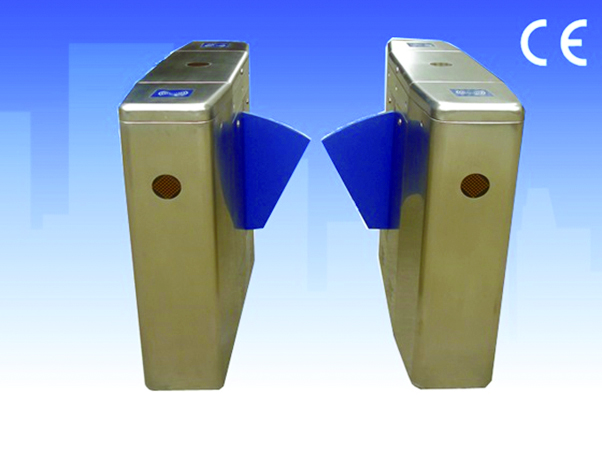

Flap Turnstile STD004
Main Functions:
- Problem-self-checking function.
- Arm Turning: Bi-direction
- When power off, arm open automatically and power on again, arm will be held automatically.
- When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.
- Auto-reposition function: After card read, passenger doesn’t pass within regulated time, turnstile will cancel order automatically. And the regulated time can be set by managers.
- Anti-rush function: if there is no open single, arm will be holding tightly.
- Stable running with little noise.
Parameter :
- Power Supply: AC220V±10V ,50Hz / AC110V±10V ,60Hz
2. Power Consumption: 100W/24V
3. Temperature: -15 to 60 degrees
4. Humidity: <95%, without concretion
5. Passage Width: 600mm
6. Passing Speed: 30 persons/min (normal open), 20 persons/min (normal close)
7. Arm Open/Close Time: 1s
8. Input Interface: +12V electrical signal or impulse signal with width more than 100ms, drive current >10mA
9. Communication Interface: RS485 (Distance: <=1200m)
10. Material: Housing – 304 stainless steel Arm – Plexiglass
11. Housing Dimension: 1200*280*990mm
12. Arm Length: 260mm
13. Working Environment: Indoors or outdoors with shed

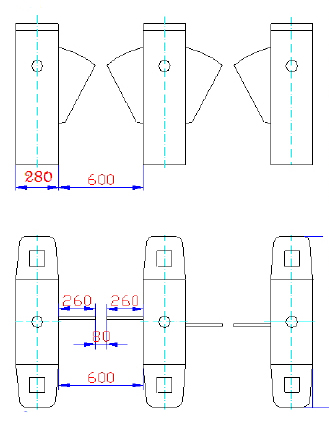

Structure:
1. Dimension
1200*280*990mm
2. Arm color
○ transparent ● Blue ○ Red
○ Customer drawings
Finishing:
● Brushed
○ Grit satin
○ Hot-galvanized
○ Powder coated in colors
Constructions:
Turnstile arm
Plexiglass
Guiding elements inside and outside Light metal casting, natural anodized
Portal frame Made of steel with space reserved for installations
Working principles:
● The arm will open automatically when we send relay signal to turnstile.
Power supply:
● 220V AC @ 60HZ
○ 230V AC @ 50HZ
○ 110V AC @ 60HZ
○ 220V AC @ 50HZ
Working power: 24V DC
Controlling way:
● Relay signal
● RS485
