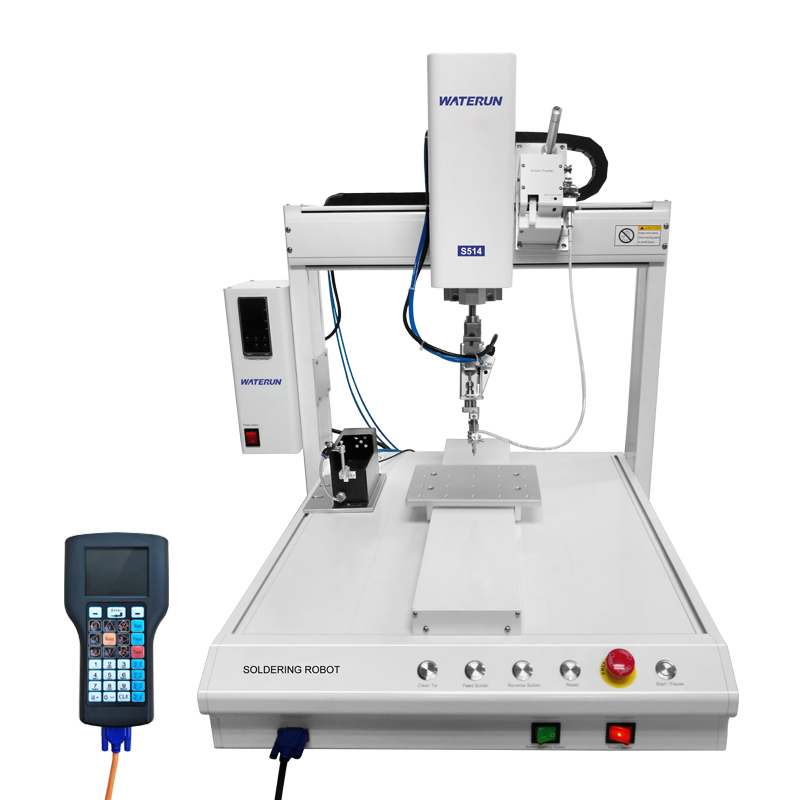

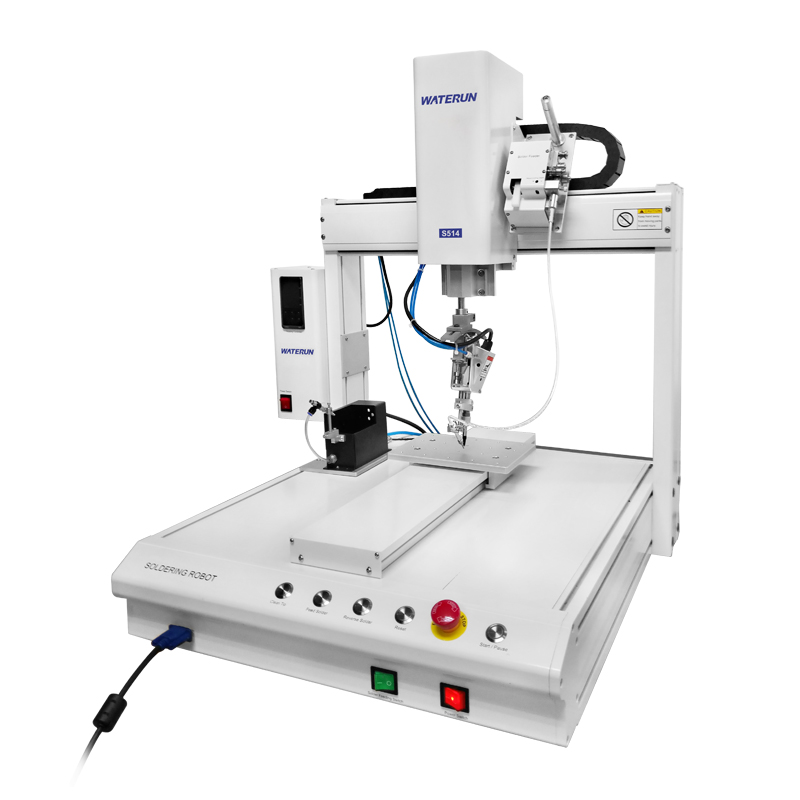

Soldering Robot machine :
Soldering Robot provides the best solution for soldering job on lead-free, heat dissipating PCB, and high thermal capacity components. It is suitable for all sorts of difficult soldering tasks and micro soldering process. It effectively improves the soldering quality and consistency. Besides, it saves 30% of the solder consumption comparing to manual soldering.
Features:
1. Applicable for different products, soldering temperature can be se set freely. (Different temperature can be set for each solder joint)

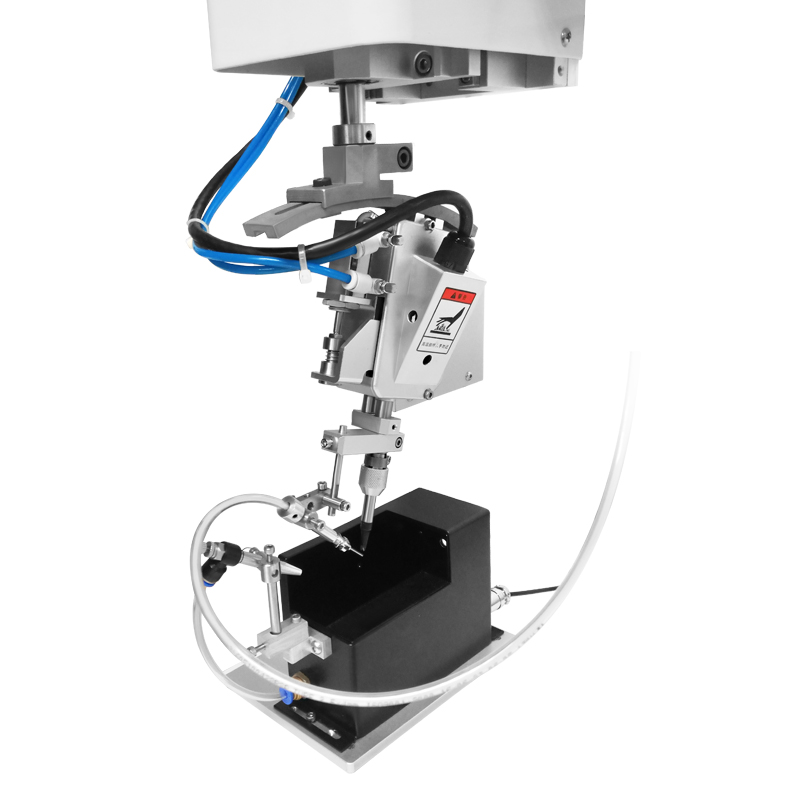

2. The soldering iron unit can be multi-directionally adjusted, which can protect the PCB and components from damage.
3. Numerically controlled temperature (static air condition: ±1℃)
4. With the handheld LCD Teaching Pendant, the programming is simple and easy to learn.
5. In the soldering process, the solder tip has rapid heat recovery and a long life span.
|
Model
|
S514
|
|
Heating Power
|
100W
|
|
Input Voltage
|
AC 110V / 220V
|
|
Output Voltage
|
DC 24V
|
|

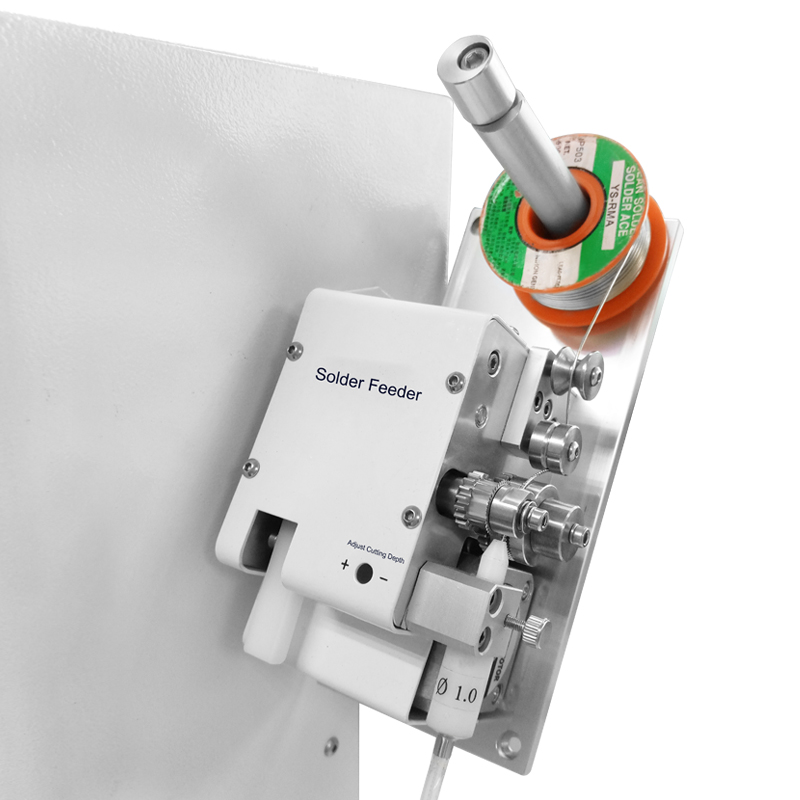

Solder Wire Diameter
|
0.5, 0.6, 0.8, 1.0, 1.2 (mm)
|
|
Preheating Temperature Range
|
0℃ – 500℃
|
|
Axis
|
4
|
|
Operating Range (X*Y*Z)
|
400 x 400 x 100mm
|
|
Dimensions (L*D*H)
|
720 x 700 x 810mm
|
|
Weight
|
about 66 kgs
|
|
Movement Speed
|
X: 0.1 – 600mm /sec
|
|
Y: 0.1 – 600mm /sec
|
|
|
Z: 0.1 – 300mm /sec
|
|
|
R: 0.1 – 600mm /sec
|
|
|
Repeatability Accuracy
|
± 0.02mm (X*Y*Z)
|
|
±0.02°(R)
|
|
|
Minimum Analysis
|
0.01 mm (X*Y*Z )
|
|
0.01°(R)
|
|
|
Program Capacity
|
Max. 999 programs
|
