รายละเอียด
- Ideal for high production of repetitive taping for industrial applications
- Program a defined length and automatically advance and cut tape
- Accepts tape widths from .25”(6 mm) to 3.15”(80 mm)
- Cut lengths from 1.6”(40 mm) to 394” (9999 mm)
|
MODEL |
Tape Width | Cut Length | Max. Outside Dia. of Roll | Core Diameter | Accuracy of Cut* | Weight | Footprint |
Dimensions |
|

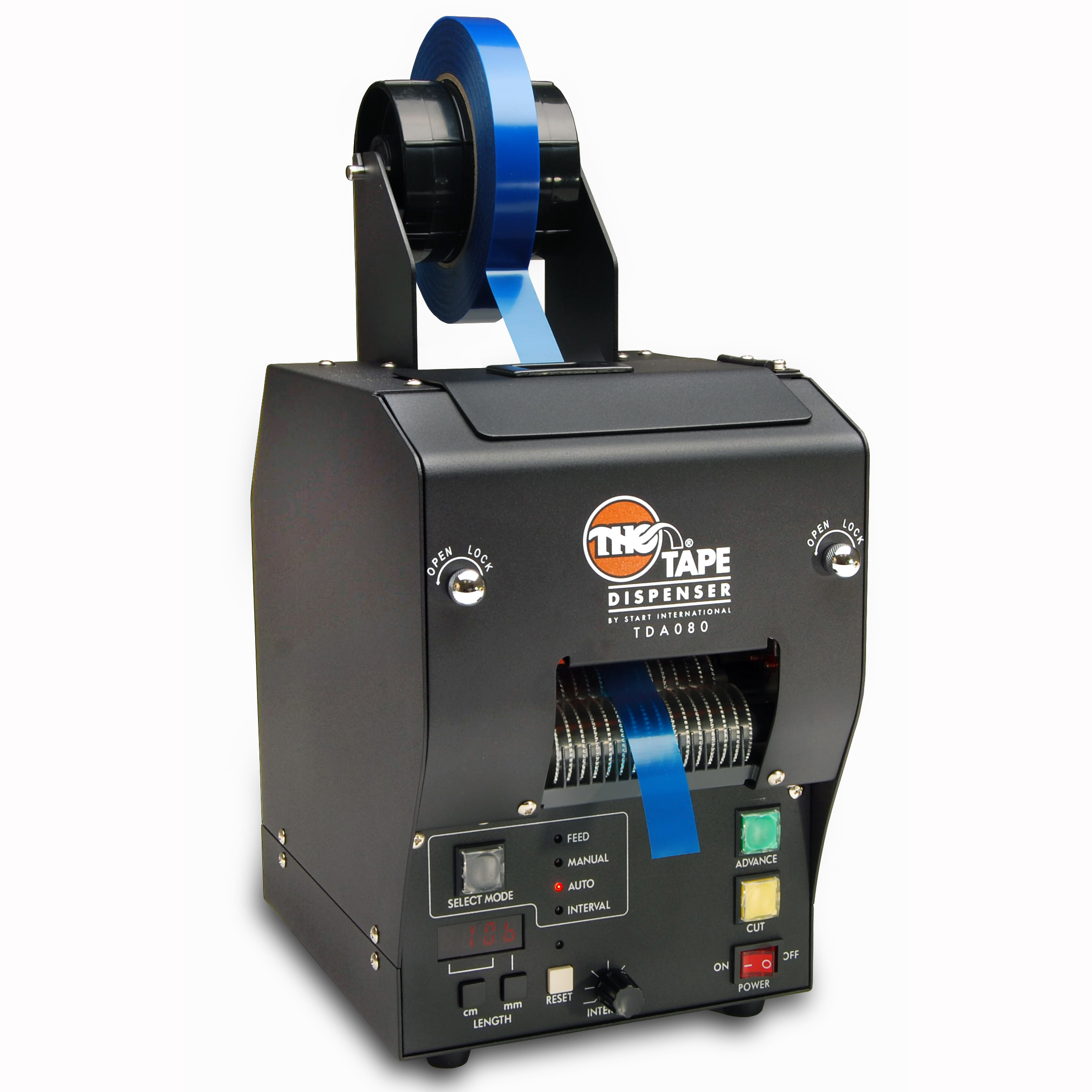

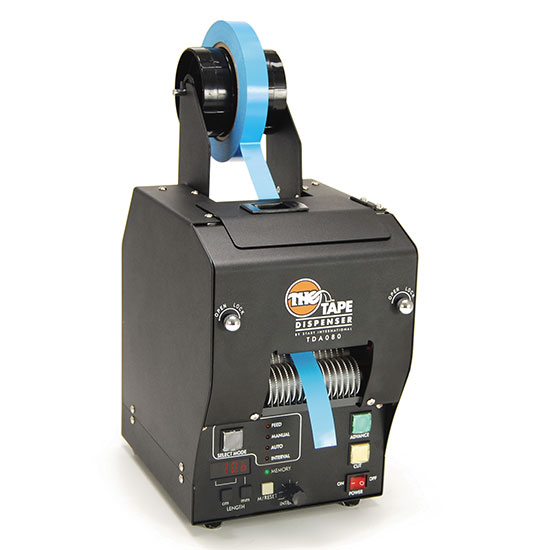

TDA080 |
0.25 to 3.15”
(6 to 80 mm) |
1.6 to 394”
(40 to 9999 mm) |
9”
(251 mm) |
3”
(76 mm) |
+/- .04”
(1 mm) |
21 lbs
(9.5 kg) |
9.25(L)x6.75”(W) (235 x 172 mm) |
9”(L)x6.625”(W)x12”(H) 229mm(L)x168mm(W)x305mm(H) |
